305m 23awg CAT6 Ethernet Cable Bare Copper Shielded Network Cable 1000ft

Shenzhen Aixton Cables Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

305m 23awg CAT6 Ethernet Cable Bare Copper Shielded Network Cable 1000ft

  • 1
  • 2
  • 3

Brand Name : AIXTON

Model Number : AXT6-SFTP-IN

Certification : ISO9001,CE,FCC,ROHS,UL

Place of Origin : CHINA

MOQ : 100rolls

Payment Terms : T/T, L/C, Western Union

Supply Ability : 20000boxes/month

Delivery Time : 15-20days

Packaging Details : 305m/1000ft/Wood Roll,Wood Roll Size:38*38*26cm,Wood Roll Weight:18KG

Product Name : CAT6 SFTP Lan Cable

Conductor Diameter : 23AWG(0.57±0.01mm)

Conductor Type : Pure Bare Copper Wire

Insulation Materials : Color-coded PE

Screen Braid : Copper Clad Aluminum

Data Rate Support : 10/100/1000Base-T

Cable Outer Diameter (mm) : 7.0 ± 0.40

Standard : ISO/IEC 11801, ANSI/TIA-568-C.2

Contact Now

305m 23awg CAT6 Ethernet Cable Bare Copper Shielded Network Cable 1000ft

305m 23awg CAT6 Ethernet Cable Bare Copper Shielded Network Cable 1000ft

305m 23awg CAT6 Ethernet Cable Bare Copper Shielded Network Cable 1000ft

Passed Fluke Test Cat6 SFTP Cables 23awg Bare Copper Shielded Network Cable 1000ft 305m

Cat 6 4 Pair S/FTP Cable has been designed for Horizontal Cabling Networks for Transmission of High Speed Data, Digital and Analog, Voice and Video Signals on LANs. Tinned Copper Screening Gives Protection Against EMI, Avoid Signal Loss and BetterMechanical Properties of Cable. Individual Pair Shielding Provides Higher Protection Against Crosstalk. Supports Gigabit Ethernet(1000 Base-T) Standard Suitable for Noisy Environments, High EMI Inteference Surroundings and Complies to the Requirement of ANSI/TIA-568-C.2 and ISO/IEC 11801 ED. 2.0. Performance Verified Upto 250mhz. UL Listed and ETL Verified.

Features

1. Cat6 SFTP Shielded Twisted Pair Cable

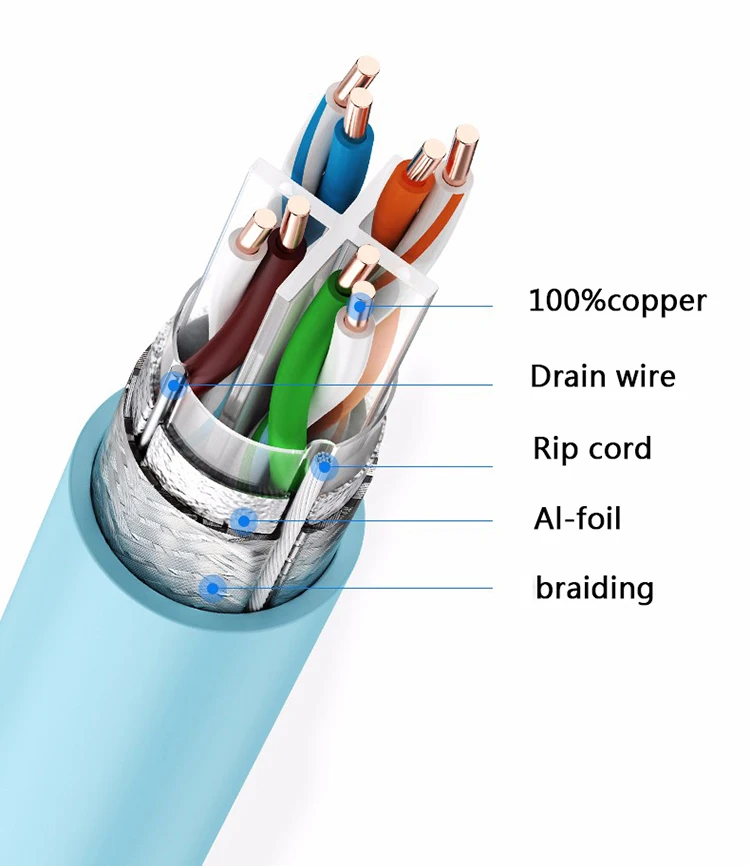

2. Doube Shields With Al-Foil and Tinned Copper Braiding
3. Pass FLUKE Test High Performance Computer Networking Cable
4. Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
5. Digital Communication Applications of up to 550MHz Bandwidth
6. Exceeds ANSI/TIA 568-C.2 , ISO/IEC 11801 Standards
7. CMX / CM / CMG / CMR rated PVC Jacket

Electrical Properties:-

Conductor Resistance : 9.38OHM

Mutual Capacitance : 5.6NF

Resistance Unbalance (%) : Max 5

Capacitance Unbalance : 330PF

Delay Skew (For 100M) : 45NS

Propagation Delay Skew : 536NS

Current Rating : MAX 1.5A

Operating Voltage : 72V

Dielectric strength : 2.5 KVDC for 2 SECS

Parameter

Product Name DOUBLE SHIELDED TWISTED PAIR 8 CORE CAT6 SFTP CABLE INDOOR
Inner Conductor Material 100% Pure Copper
Diameter 0.57mm ± 0.01mm ( 23AWG )
Insulation ( Dielectric ) MaterialThicknessDiameter Color-coded PE (Polyethylene)
≥ 0.21mm
1.03mm ± 0.01mm
Cross Separator Material Plastic
Shielded Layer Material Aluminum Foil

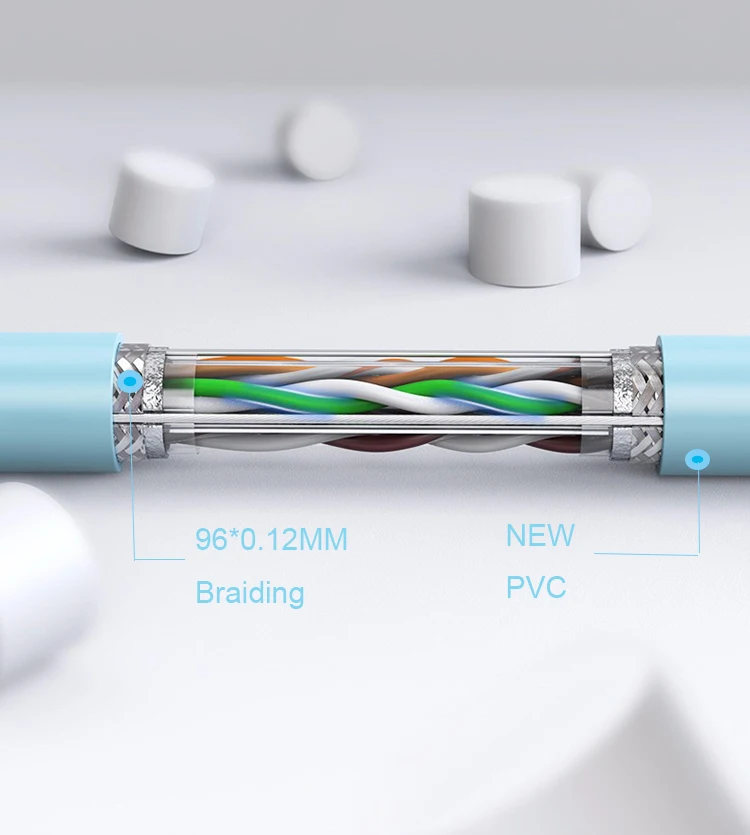

Braided MaterialTypeDiameter CCA, Aluminum, Copper, TC and so on
32, 48, 64, 80, 96, 112, 128, 144
0.08mm, 0.10mm, 0.12mm
Twisted Pair N/A Pair 1: Blue, White/ Blue
Pair 2: Orange, White/ Orange
Pair 3: Green, White/ Green
Pair 4: Brown, White/ Brown
Outer Jacket Material New PVC (Rip code, Optional)
Thickness ≥ 0.65mm
Nominal O.D 6.80mm ± 0.10mm
Reference Standard Category 6 UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard
Rated Temperature -20℃ to +70℃
Supports Transmission Digital and analogue voice, data and video signal

Photos

305m 23awg CAT6 Ethernet Cable Bare Copper Shielded Network Cable 1000ft

305m 23awg CAT6 Ethernet Cable Bare Copper Shielded Network Cable 1000ft

305m 23awg CAT6 Ethernet Cable Bare Copper Shielded Network Cable 1000ft

305m 23awg CAT6 Ethernet Cable Bare Copper Shielded Network Cable 1000ft

305m 23awg CAT6 Ethernet Cable Bare Copper Shielded Network Cable 1000ft

FAQ

305m 23awg CAT6 Ethernet Cable Bare Copper Shielded Network Cable 1000ft

Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the

price advantage of products with the same quality parameters, and we promise to

achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting

"Enough Cores, Enough Meters, High Quality, High Performance". Providing

our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts

to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and

support long-term cooperative customers to upgrade to global agents and enjoy more

discounted prices.
